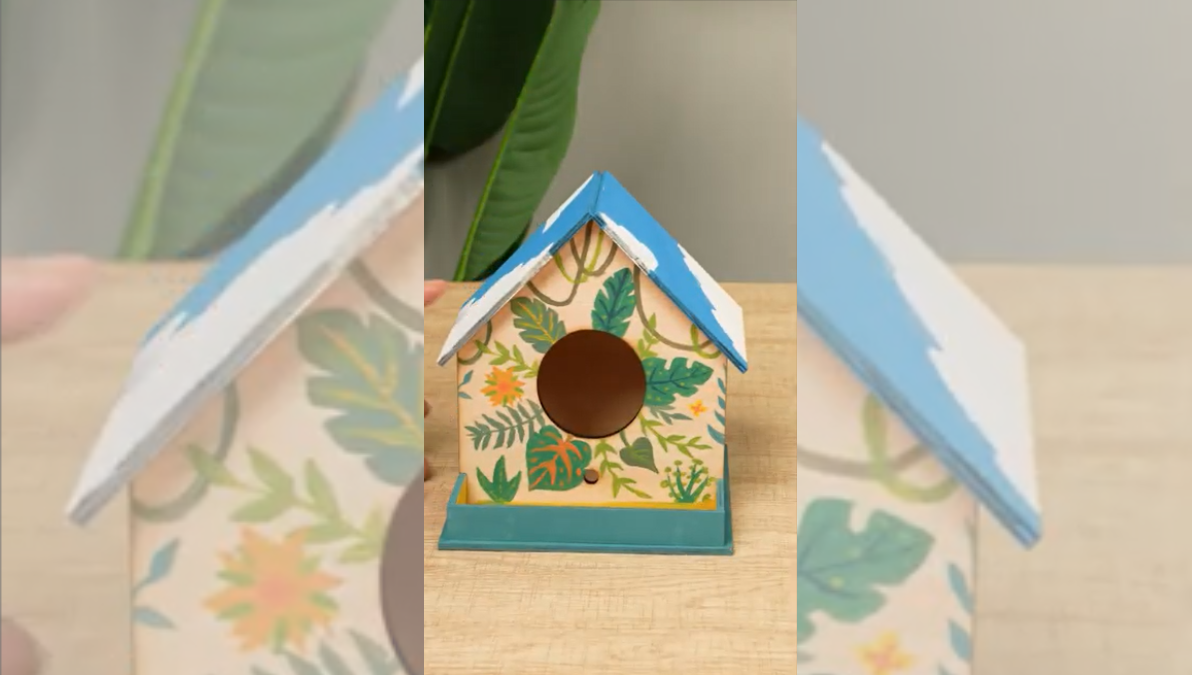

How to Design and Laser Cut a Birdhouse from Wood

There’s something peaceful about watching birds playing in your backyard. But isn’t it better if you could design and build the home yourself? It is not just a fun project; it is also a way to increase the bird population by creating a safe and comfortable nesting spot for them.

If you like DIY projects, you can make a wooden birdhouse to hang by your house, gift a bird-loving friend, or sell. In this beginner-friendly guide, I will show you how to create a design for your birdhouse from scratch, set up your laser engraving machine and cut the wood, and attach the pieces to complete the project.

Optional materials

With everything you need for the project ready, let's get started.

The first step is to have a general idea of what you want the birdhouse to look like. The shape, size, and structure depend on the kind of bird you are building for. If you are new to designing, going for complex software will only make it frustrating to come up with a working design. Instead, try online generators such as MakerCase to auto-generate slotted box designs that you can tweak.

The designs should be in 2D outlines, and arranged in a “flat-pack” model, where all parts are cut from one or two sheets and then assembled later. The line weights should be thin, about 0.001", which is best for cutting. Also account for laser kerf, such as 0.2 mm, for slabs that are 6 mm.

Here are some dimensions you could use while designing your birdhouse.

After designing, assemble everything together like a puzzle, leaving about 2 mm spacing between the parts. This makes sure they don’t overlap or burn during cutting. If the design is too big, break it down into multiple sheets.

Usually, laser engravers use color to distinguish between cut, score, and engrave lines. The color patterns show the laser what to do and in what order, so don’t mix them up. Red lines are typically used for cutting, while black lines are used for engraving. Blue lines or dotted lines indicate folds or guides.

If everything is in order, save and export the file as a vector format.

Connect the laser engraver to a power source and turn on the main power switch on the laser. Disengage the emergency button if it has one. If the laser head does not automatically move to the home position, manually slide it to the “zero position” or press the “Home” button to move it.

You can connect the laser to your computer either through Wifi, using a USB cable, an SD card, or Bluetooth. On the computer, go to “Devices” to scan for the laser. If the machine is not detected, you can add it manually.

Once connected successfully, the screen will automatically show controls or the bed preview, where you can then adjust the power and speed settings for cutting.

Here are some power and cutting speed settings for different types of wood.

There are two main types of focus methods for your laser machine. The fixed focus is the already set focal height. You adjust the height of the wood or use a focus spacer to match it. The second one, adjustable focus, is where you manually adjust the lens position until it’s focused.

Because your design has additional shapes, use Shift + Frame or Alt + Frame. This prompts the laser head to start moving within the bounding box, along the edges of the design, without firing the laser.

Observe the red dot and adjust the design on the software if needed to ensure the laser is moving within the correct position.

Now you are ready to start cutting. Ensure you have selected the right material and thickness, double-checked on the speed and power settings, and selected the right layer on the design software. To prevent excessive burn marks on the wood, cover the top of the wood with painters’ tape.

Click “Send to Laser” and start. The laser immediately starts cutting through the wood, following your design pattern. Watch this process closely, checking for any strange noises, excessive smoke, fires or burn marks. The emergency stop button immediately stops the process in case of any foreseen danger. Inspect the cause of the problem and fix it before restarting the process.

Once the machine stops running, let the wood cool down for a minute, then remove all the pieces. Peel off the painters’ tape and smooth any rough edges, especially the entrance hole, with sandpaper.

Arrange all the parts and see how they fit together, first without using any glue. If they all come together, then you can reassemble them, this time applying glue along the edges. You can clamp the edges to hold the glue strongly in place.

Start by attaching the sides, then attach them to the floor and then to the roof. If any hinges and screws are involved, use a low-torque drill to make holes, and manually attach the hinges and screws.

You can add personality to your birdhouse, or just make it pretty for the birds by using non-toxic, water-based paints or acrylic paints. Start by lightly sanding the surface using a 220-grit sandpaper. Avoid painting the birdhouse’s interior as birds prefer a more natural and earthy look.

You could also use a water-repellent finish or clear sealers to protect the paint and wood from moisture and make the birdhouse more durable. Avoid anything with strong fumes or chemically treated wood accents, as they will repel birds.

If painting is not your cup of tea, you could add some laser engravings in the design stage.

The birdhouse is not ready to go, and can be hung outdoors for some birds to start living in it. Ensure it is mounted securely, away from direct midday sunlight. The hole should face away from oncoming winds to minimize rain damage. You want to provide a warm and dry nesting environment without the interior overheating. The ideal place to position the nirdhouse is under a tree canopy with partial shade.

Leave the interior empty as the birds like to bring in their own materials.

Maintenance Tips for the Birdhouse

Regularly clean the birdhouse, especially after nesting season and between nesting cycles. While cleaning, inspect for water damage, mould, rot, and any loose parts. Get rid of any pests and predators, as they will drive the birds away.

During harsh weather conditions, you can temporarily move the birdhouse to a warmer and drier place to make it more comfortable for the birds.
