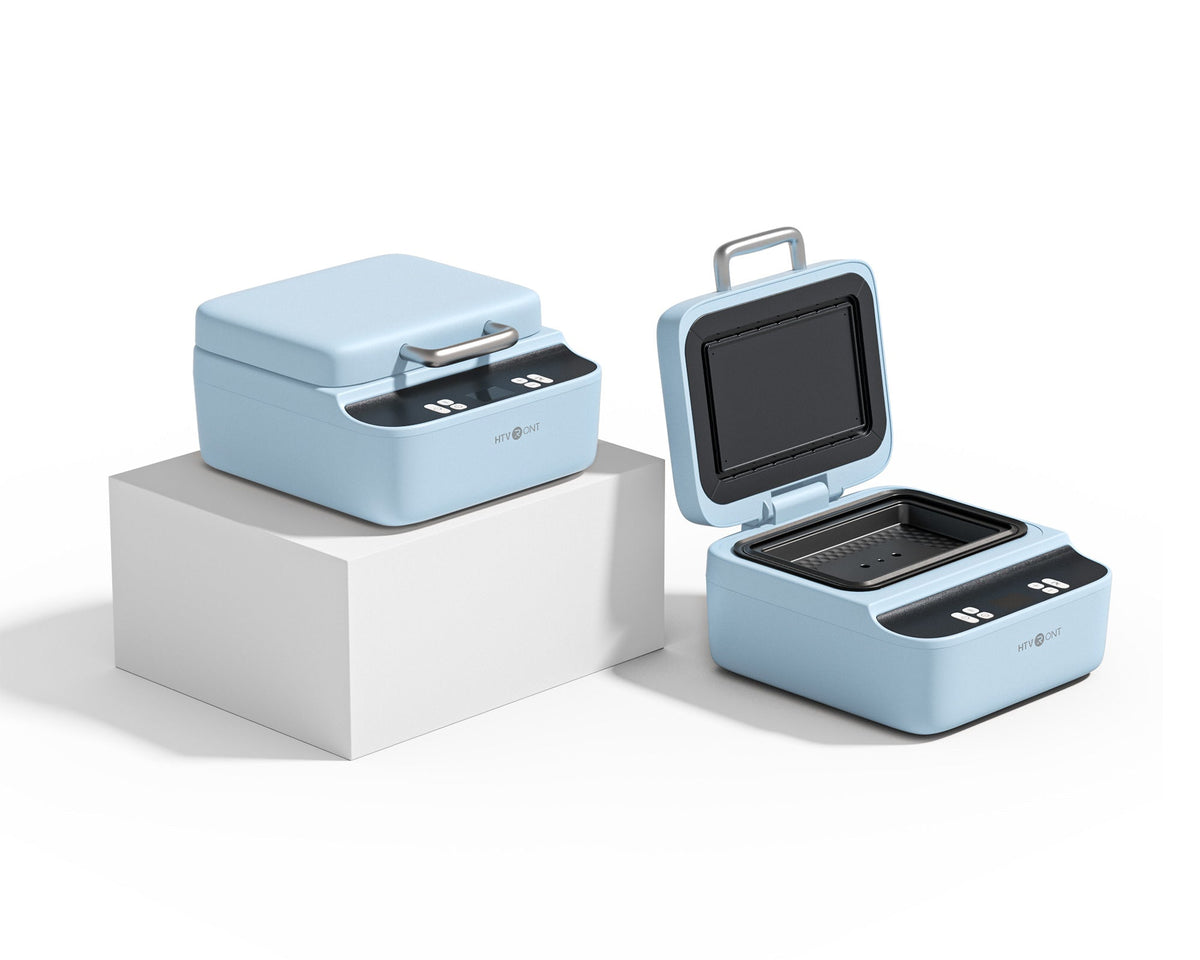

This is a cover image about phone case heat press.

← Go back

Introducing The New HTVRONT’s New H17 Phone Case Heat Press!

Written by HTVRONT

Published on July 2, 2025

Modified on November 4, 2025

Reading time for 6 min

With phone brands launching new products every other day, holidays coming up, and everyone trying to keep up with pop trends, we all need a user-friendly heat press machine to help us express our personality through DIY projects. The HTVRONT H17 Phone Case Heat Press was designed for individual users and small businesses looking to customize lightweight accessories.

The heat press is beginner-friendly, with a simple setup required. You just need to pair it with LOKLiK IdeaStudioTM software and sublimation film. In this article, you will learn everything you need to know about this brilliant device so you can grab one for yourself and start actualizing your DIY projects.

Quick in

1. The Main Features of the HTVRONT Phone Case Heat Press 1.1 Product specifications 2. Why Choose HTVRONT H17? Top 5 Advantages 2.1 Versatility to make many creations 2.2 One fixture for all popular phone brands 2.3 The transfer perfectly covers all the substrate’s edges 2.4 Precise temperature and pressure control 2.5 Perfect alignment for accurate coverage 3. Beyond Phone Cases: 8+ Creative Applications 4. FAQs on The Phone Case Heat Press from HTVRONT

The Main Features of the HTVRONT H17 Phone Case Heat Press

The new phone case heat press machine is a fully automatic, high-precision heat transfer device meant to make DIY customization effortless. The heat press is originally designed to personalize phone cases with edge-to-edge image transfers. However, it can also be used to customize curved surfaces up to 135°, such as badges, coasters, keychains, ceramic tiles, fridge magnets, and more.

The default mode has phone case press settings, but the temperature and time can be freely adjusted for other substrates.

The heat press comes in a variety of colors such as daisy white, bubble blue, and lavender purple.

Product specifications

This is an HPX01 model that uses vacuum technology to transfer designs. The device measures 326 mm × 304 mm × 172 mm with internal dimensions of 203 mm × 117 mm × 20 mm.

The phone case heat press machine can heat from 25°C to 130°C within 2 minutes, making it possible to work on different projects simultaneously within a short time. The pressing temperature ranges from 100 to 180°C. The time settings are from 1 to 600 seconds, which allows for extended pressing time in a single run when needed.

Product Name	HTVRONT H17 Phone Case Heat Press
Model	HPX01
Brand	HTVRONT
Colors	Daisy White, Bubble Blue, Lavender Purple
Heat Press Technology	Vacuum technology and chamber heat transfer technology
Adjustment Functions	The default phone case heat press mode; temperature and time can be freely adjusted for other substrates.
Heat Transfer Substrates	Mainly for phone cases, but also suitable for small coated items like badges, coasters, keychains, ceramic tiles, fridge magnets, and more.
Device Dimensions	326 mm × 304 mm × 172 mm
Internal Dimensions	203 mm × 117 mm × 20 mm
Temperature Settings	100 to 180°C, press once to adjust by 5°C up or down, press and hold to adjust by 10°C up or down.
Time Settings	1 to 600 seconds, press once to adjust by 5 s up or down, press and hold to adjust by 10 s up or down.
Heating Speed	From 25°C to 130°C within 2 minutes
Product Weight (Only the device)	6.5 kg/14.33 lb
Package weight	8.0 kg/17.6 lb
LOKLIK IdeaStudio Software Auxiliary Printing	LOKLiK IdeaStudioTM includes a phone model library, allowing users to adjust design size and position based on the selected phone model. It also supports mirror processing and outputs the sublimation print files for heat transfer.
Included in the box	HTVRONT H17 Phone Case Heat Press, 1 Universal Phone Case Fixture Set, 1 Badge Fixture Set, 1 Sublimation Film (A4), 5 Heat-resistant Gloves, 1 Pair Sublimation Badge (58 mm), 3 Tweezers, 1 Heat-resistant Tape, 1 Roll

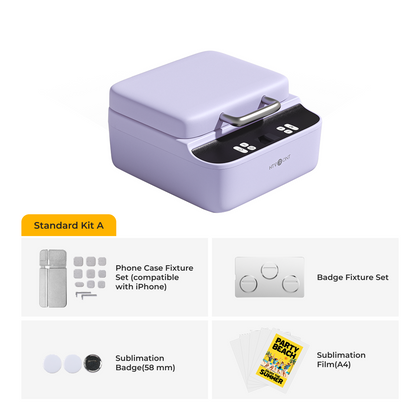

What’s in the Box? (Spoiler: It’s Loaded!)

We packed everything you need to start pressing like a pro:

HTVRONT H17 Phone Case Heat Press

1 Universal Phone Case Fixture Set

1 Badge fixture set

1 Sublimation film (A4)

5 Heat-resistant gloves

1 Pair sublimation badge (58 mm)

3 Tweezers

1 roll of Heat-resistant Tape

This image shows the contents of a phone case heat press box.

Why Choose HTVRONT H17? Top 5 Advantages

There are many advantages that come with using the new HTVRONT H17 phone case heat press.

1. Versatility to make many creations

You can do more than just transfer designs on phone cases with this heat press. Its versatility makes it possible to use it on coasters, badges, fridge magnets, pet tags, keychains, ceramic tiles, and many more. The machine also offers the ability to switch between different substrates and case styles with minimal setup changes.

2. One fixture for all popular phone brands

The fixture that comes with the heat press is compatible with iPhone 11 and newer models, plus a wide range of Android cases, including Samsung, Google, and Huawei. You don’t need to constantly swap up fixtures for different projects. This helps save on costs and simplifies operations.

This image shows the iPhone fixture and Android fixture.phone case heat press box.

3. The transfer perfectly covers all the substrate’s edges

The vacuum tech applies uniform pressure when pressing. This works on curved surfaces that curve up to 135°, ensuring vibrant, bubble-free color throughout the edges.

4. Precise temperature and pressure control

The precise temperature control and custom molds ensure vibrant colors and sharp details, minimizing defects and delivering high-quality results with every print. There is a yellow light on the upper button that sets up the upper heat plate and a red light sets the lower plate. The button beneath it sets the preheating time and transfer time. A short press up or down adjusts it by 5°C, and a long press in either direction adjusts it by 10°C.

This image shows the temperature and pressure control of a phone case heat press.

5. Perfect alignment for accurate coverage

The heat press is equipped with phone-specific templates and pattern adjustment tools that improve positioning accuracy and ensure complete coverage when transferring. It also comes with alignment guides with instructions to help you position the substrate at the exact center. The automatic pressure controls also help avoid the risk of misalignment during set-up and transfer. The heat press also has a software-guided precision alignment tool that helps save time and effort and prevents skewness.

This image shows the design interface of the phone case heat press.

Beyond Phone Cases: 8+ Creative Applications

Individual creators can express themselves by designing and transferring unique artwork onto substrates for personal gratification, gifting friends, or for their pets. Its ease of use and high efficiency make experimenting with different designs on phone cases fun and effortless.

Beyond simple customization, the phone case heat press can be used to brand promotional products and corporate merchandise. Small on-demand printing businesses can take advantage of the ideal low cost of the heat press for small batch production of customized substrates, to easily boost profit.

Some of the items that are easily customizable using the phone case heat press are:

Personalizing phone cases for personal use, corporations, and branding for special occasions
Decorating drink coasters
Customizing badges, IDs, and event passes
Full-color photo printing on fridge magnets
Printing logos and QR codes on small buttons and recognition award pins
Photo printing on keychains
Printing names on luggage tags
Customizing fancy business cards

FAQs on The Phone Case Heat Press from HTVRONT

1. How long can I use the H17 heat press continuously?

We recommend letting the device rest for 10-15 minutes after every 1-2 hours of continuous use. This helps prevent overheating and makes it perform well in the long term.

2. Is it possible to press multiple substrates at the same time?

Yes, but ensure you leave at least 1 cm between each substrate to avoid heat interference with the designs. The substrates should also be flat for even heat distribution.

3. Can I use a regular printer for heat transfer printing?

No. It only works with a specialized sublimation printer and ink. The regular inkjet printers cannot print with sublimation ink.

4. What generates the unusual smell when using this heat press?

The smell is most likely from the sublimation ink evaporating or the volatilization of the lubricants on the fixture. This is a normal occurrence. For first-time users, the smell could also be from the burning off of residues from manufacturing, which eventually wears off after being in use multiple times.

5. What items can the HTVRONT H17 Phone Case Heat Press deal with?

Although it is designed for phone cases, you can also use the heat press to customize coasters, badges, luggage tags, ceramic plates, and other flat substrates. Just change the fixtures to match your substrate. Also, ensure the item fits within the heating chamber (203 mm x 117 mm x 20 mm) and that it has a sublimation coating on the surface for good transfer results.

6. What phone cases are supported by the HTVRONT H17 model?

The iPhone fixture can be used to design phone cases for iPhone 11 and up versions. The Android fixture can be used to design cases for Samsung, Google, Xiaomi, Huawei, and other major phone brands. The phone cases should however, be sublimation-coated and can be glossy, matte, gradient, and other special materials. The user manual has a more in-depth guide on this.

Final Verdict: Why the H17 is a Must-Have

If you’re serious about customization, the HTVRONT H17 isn’t just a tool—it’s your creative sidekick. From phone cases to merch branding, it delivers studio-quality results with DIY simplicity.

Ready to turn your ideas into reality? Grab an H17 and start pressing like a pro today!
