What Is a Rotary Hook? How It Forms Every Stitch

Introduction

Every embroidery machine has a part you never see working but every stitch depends on. It sits below the needle plate, spins continuously while the machine runs, and performs the single most timing-sensitive action in the entire embroidery process: catching the loop of top thread and wrapping it around the bobbin thread to lock a stitch. That part is the rotary hook.

When a design comes out with skipped stitches, thread breaks, or a bird's nest on the back, the rotary hook is one of the first places an experienced technician checks. Yet most beginners have never heard of it, let alone looked at one. This guide explains what a rotary hook is, what it does inside a lock stitch, how it differs from the oscillating hook found in many home sewing machines, what its failure symptoms look like on fabric, and how to keep it clean and properly timed.

What Is a Rotary Hook?

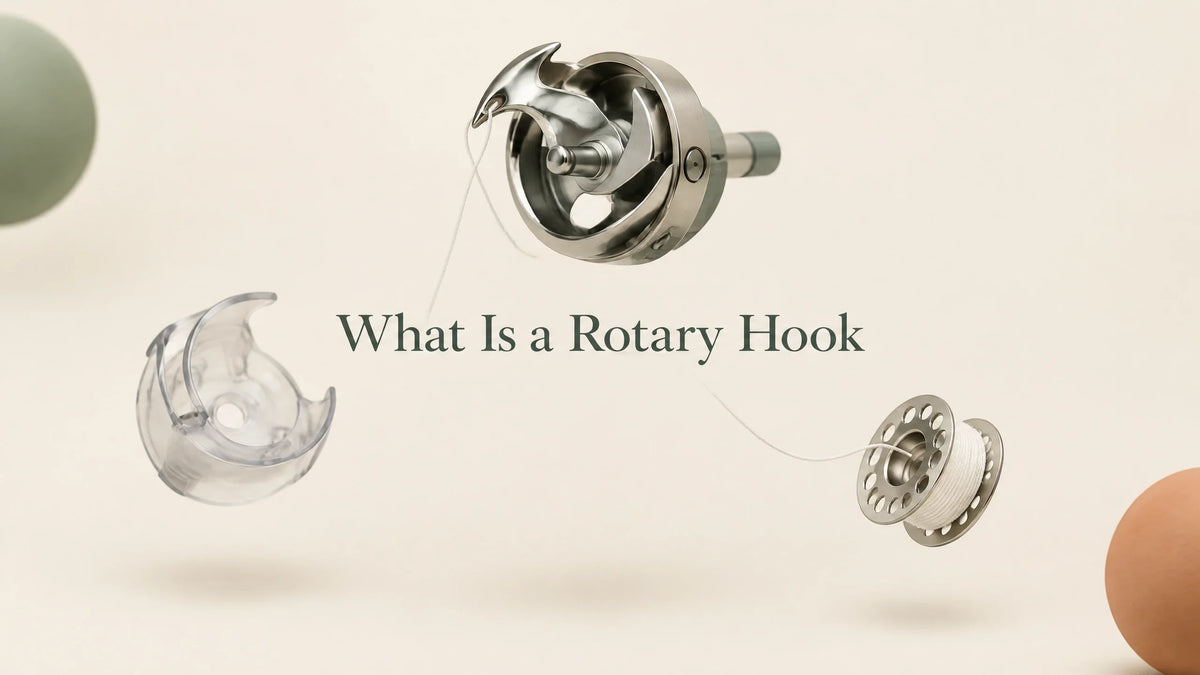

A rotary hook is the rotating hook assembly mounted beneath the needle plate of an embroidery machine. Its job is to catch the loop of top thread that forms below the fabric as the needle rises, carry that loop around the bobbin case, and release it so the top thread and bobbin thread interlock into a lock stitch.

The rotary hook does not pierce the fabric. The needle does that. The rotary hook's role is purely one of timing and capture: it must be in exactly the right position at exactly the right moment to hook the thread loop, and it must complete a full 360-degree rotation for every stitch cycle. On most embroidery machines, the rotary hook rotates twice for every one up-and-down motion of the needle, ensuring a complete hook-and-release cycle.

A rotary hook is a precision assembly, not a simple rotating part. Its hook point, bobbin case, tension spring, and timing relative to the needle all have to work together within tolerances measured in fractions of a millimeter. When any of those elements drifts, the stitch quality degrades immediately—usually before any mechanical part actually "breaks."

What the Rotary Hook Does in a Lock Stitch

Every stitch on an embroidery machine is a precisely choreographed interaction between the needle and the rotary hook. The needle carries the top thread down through the fabric. As the needle reaches its lowest point and begins to rise, a small loop of top thread forms just below the fabric, near the needle's eye. At that exact moment, the hook point—the sharp tip on the outer edge of the rotary hook—must rotate into position and catch that loop.

Once caught, the rotary hook carries the loop around the bobbin case, passing it over and around the bobbin thread. The take-up lever then pulls the top thread back up, tightening the loop around the bobbin thread and locking the two threads together. The knot sits on the underside of the fabric, hidden against the backing, and the stitch is complete.

If the hook point arrives too early, the thread loop has not yet formed. If it arrives too late, the loop has already been pulled back up. Either way, the result is a skipped stitch. If the hook point is too close to the needle, it can strike the needle and break it. If it is too far away, it misses the loop entirely, causing skipped stitches or thread breaks.

This is why rotary hook timing and needle clearance are not "set it and forget it" adjustments. They are the mechanical foundation of every stitch the machine makes.

Key Parts of the Rotary Hook

The rotary hook is an assembly of four key parts, each with a specific job. The hook point catches the thread; the bobbin case holds and tensions the bobbin; the shaft and drive synchronize rotation with the needle; the positioning finger keeps the bobbin case stationary while the outer ring rotates.

• Hook point. The sharp tip on the outer rotating ring. It is the only part that directly contacts the top thread loop. Its sharpness and position determine whether the hook can consistently catch the thread.
• Bobbin case and bobbin. The bobbin case sits inside the rotary hook and holds the bobbin. The tension spring on the bobbin case provides baseline resistance so the bobbin thread releases in a controlled way as the rotary hook rotates.
• Rotary hook shaft and drive. The rotary hook is driven by the lower shaft, which is synchronized with the main shaft. This synchronization is what keeps the hook point arriving at the right moment relative to the needle.
• Positioning finger / anti-rotation mechanism. This prevents the bobbin case from rotating along with the outer hook ring, while still allowing the bobbin thread to release in a controlled path.

Among these, the hook point's relationship to the needle is the center of all adjustment and troubleshooting. Service manuals typically specify a clearance of 0.05–0.1 mm—roughly the thickness of a sheet of paper. The hook point should be positioned just behind the needle's scarf (the indentation above the eye) at a specific point in the needle's upward travel. Different brands and models use slightly different timing angles: Ricoma's TC series specifies 195 degrees, as does the EM-1010; Melco/BERNINA systems call for approximately 201.5 degrees with a clearance range of 0.10–0.30 mm. These numbers matter because they show that rotary hook timing is an engineering specification, not a vague "feel" adjustment.

Rotary Hook vs. Oscillating Hook

A rotary hook rotates continuously through a full 360 degrees, while an oscillating hook swings back and forth through an arc of about 200 degrees and does not complete a full rotation. The rotary hook supports much higher stitching speeds because continuous rotation avoids the inertia and reversal of an oscillating hook.

That is why virtually every modern embroidery machine uses a rotary hook—it matches the high-speed, multi-needle production rhythm. The trade-off is that the rotary hook is more sensitive to tension settings and mechanical precision, with a narrower adjustment window. This is also why rotary hook cleaning, lubrication, and timing checks rank high in embroidery machine maintenance: it is not a "rugged" part but a precision-fit assembly.

Symptoms That Point to the Rotary Hook

A rotary hook rarely fails suddenly. Its problems usually show up first as stitch symptoms. Use this table as a starting point for tracing a visible problem back to the rotary hook.

Maintaining the Rotary Hook

Rotary hook life and stability depend largely on two simple habits: keep it clean, keep it lubricated. A dry or lint-clogged rotary hook track increases rotation resistance and indirectly shifts hook timing.

Cleaning frequency. Industrial embroidery machines typically require daily cleaning of the rotary hook area—use compressed air or a soft brush to clear lint and dust from around the bobbin case, under the tension spring, and along the rotary hook track. Home or light-duty machines can adjust the interval to usage intensity, but as soon as you start embroidering terry cloth, fleece, or other fuzzy fabrics—or notice the underside stitch quality declining—clean the rotary hook first before touching the tension dials.

Lubrication. Lubrication intervals vary widely by model, from every 3–4 hours to every 5–6 hours with one drop of specified oil. Follow your machine manual. The principle is "little and often"—enough oil to reduce friction, not enough to contaminate the embroidery. Too much oil flings onto the fabric or into the bobbin case, attracting lint and forming oil sludge.

Clearance checks. After every needle size change (for example, from 75/11 to 90/14), recheck the hook point clearance to the needle. The needle diameter has changed, so the relative position has changed too. Using the old setting can cause needle breakage or skipped stitches.

A Troubleshooting Order for Beginners

When stitch quality drops, the rotary hook is not always the first suspect, but it is part of a systematic check. Work through these steps in order before touching any timing adjustment:

1. Confirm the needle. Check that the needle is not bent, is installed correctly, and matches the thread weight.
2. Confirm the upper thread path. Re-thread the entire path with the presser foot raised, and verify the thread is seated in every guide and tension disc.
3. Clean the rotary hook area. Clear lint from around the bobbin case and under the tension spring. Confirm the bobbin case is seated and clicked into place.
4. Only then consider timing and clearance. Timing adjustment involves loosening the rotary hook set screw and aligning the hook point at a specific angle.

Timing and clearance adjustment is a mechanical setting that requires care. If you are unsure of the current angle baseline, or if the machine is still under warranty, cleaning, lubricating, and changing the needle are safe and effective first steps. Adjustments that involve "timing" should follow the model manual or be performed by a technician.

Conclusion

The rotary hook is the part of the embroidery machine that makes the lock stitch possible. It does not pierce fabric or carry the visible design—it catches the top thread loop, carries it around the bobbin, and locks the two threads together, stitch after stitch, at speeds measured in hundreds of stitches per minute. Its precision is what allows embroidery to look clean on the front and stay secure on the back.

For beginners, the practical takeaway is simple: understand what the rotary hook does, recognize the stitch symptoms that point to it, keep it clean and lubricated, and know when a problem is a cleaning issue versus a timing adjustment that should be left to the manual or a technician. The rotary hook is not the most visible part of the machine, but it is one of the most important—and once you understand it, the machine stops being a black box and starts making sense as a timed mechanical system.
