DO1 DTF Oven Tutorial

Introduction: Meet the DO1 DTF Oven

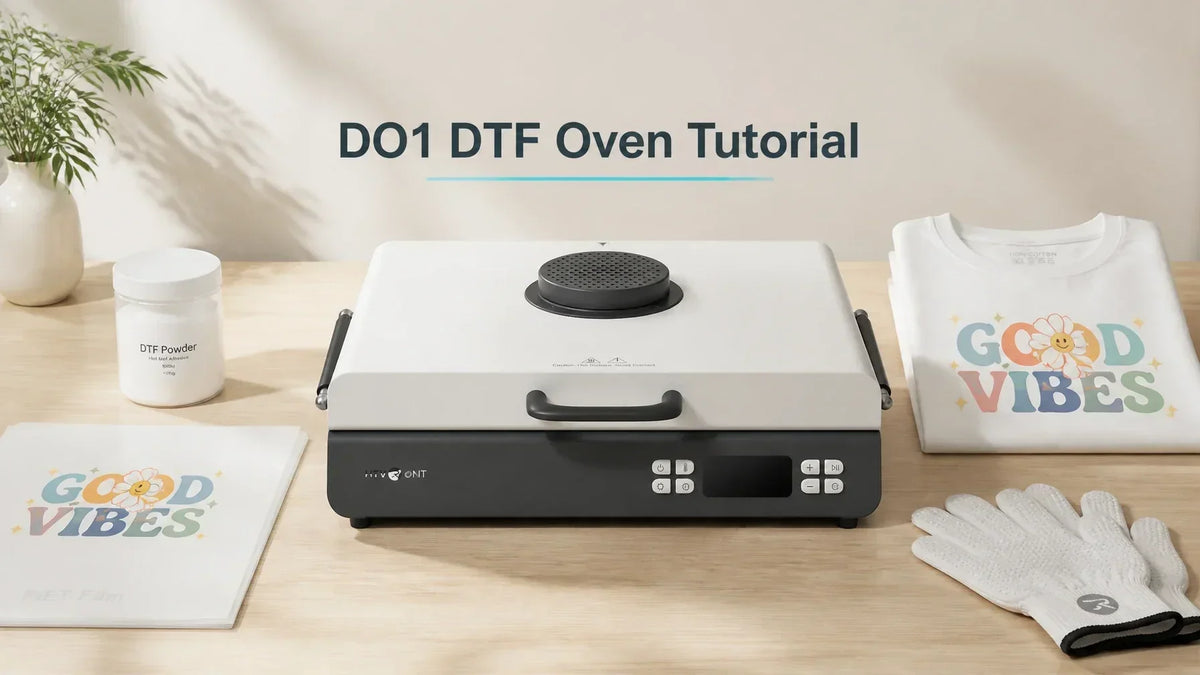

The HTVRONT DO1 DTF Oven is a compact, 110V curing oven designed for home-based and small-shop DTF printing. With dual-layer heating, a 19×17 inch curing area, and built‑in air filtration, it delivers professional‑grade curing without the need for industrial power or space.

If you've invested in a DTF printer, you already know that curing is the make‑or‑break step in the DTF workflow. Without proper curing, even the best DTF ink and DTF powder will produce prints that peel, crack, or fade after washing.

The DO1 DTF Oven solves this problem with a thoughtful design that's approachable for beginners and powerful enough for growing shops. In this tutorial, I'll walk you through everything you need to know—from unboxing to your first perfect cure.

If you're new to DTF printing, start with our introductory guide to DTF printing to understand the basics. And if you're setting up a DTF printer for the first time, our D2 DTF Printer tutorial hub covers everything from software setup to maintenance.

Let's start by unboxing the DO1 and seeing exactly what you get.

Chapter 1: What's in the Box

The DO1 DTF Oven comes with everything you need to get started: the oven itself with a pre‑installed smoke filter, a pair of heat‑resistant gloves, a foldable powder shaker, and a warranty card along with brand and user manual cards.

When you open the box, here's what you'll find:

Take a moment to familiarize yourself with the components. The smoke filter is already installed, so you don't need to worry about setup—it's ready to go out of the box. The foldable shaker is a clever design that collapses for storage and opens into a sturdy box for powder application.

With everything unpacked, let's gather the additional materials you'll need for your first curing session.

Chapter 2: Materials Preparation

To complete a full DTF curing and transfer workflow, you'll need a DTF printer (like the D2 DTF Printer), DTF powder, a T‑shirt or garment, a heat‑resistant sheet, and your DO1 DTF Oven with gloves and shaker.

Before you start curing, gather these materials:

If you're using the HTVRONT D2 DTF Printer, you already have a compatible system. For detailed setup, software installation, maintenance, and troubleshooting, check out our complete D2 DTF Printer tutorial hub – it's your one-stop resource for everything D2-related.

With materials ready, let's walk through the curing process step by step.

Chapter 3: First Use – Step‑by‑Step Curing Tutorial

Curing with the DO1 DTF Oven involves four main stages: printing and drying your design, applying DTF powder, curing in the oven, and heat pressing onto your garment. Follow each step carefully for professional‑grade results.

Step 1: Print and Dry Your Design

Start by printing your design with a DTF printer onto PET film using DTF ink. Once the print is complete, let it air dry until the surface turns matte. This is crucial—if the ink is still glossy or wet, the powder won't adhere properly.

Step 2: Understanding the Control Panel

Before you power on, let's quickly review the control panel. The DO1 DTF Oven features an intuitive interface that makes operation straightforward even for beginners.

The control panel has four main buttons:

• Power Button – Short‑press to turn the machine on or off
• Temp/Time Button – Press to adjust temperature (displayed in °C or °F) and curing time
• Mode Button – Switch between Auto Mode and Manual Mode
• Start Button – Flashes red during preheating; turns solid green when ready

Step 3: Power On and Set Parameters

Short‑press the Power button to turn the machine on. The default setting is 145°C (295°F) for 80 seconds, which is suitable for most DTF films and powders.

To adjust the temperature or time:

1. Press the Temp/Time button once to adjust temperature, or twice to adjust time
2. Use the up/down arrows to set your desired values
3. Press the Temp/Time button again to confirm

Step 4: Choose Your Mode – Auto or Manual

Press the Mode button to switch between two operating modes:

• Auto Mode – The oven starts curing automatically when you close the lid. Perfect for batch work and hands‑free operation.
• Manual Mode – You control when the cycle starts by pressing the Start button after closing the lid. Useful when you need precise timing control.

Step 5: Preheating and Powder Application

Once your settings are confirmed, the machine will begin preheating. The Start button will flash red during this phase.

While the oven preheats, prepare your film with DTF powder:

1. Fold the Foldable Shaker into a box shape
2. Pour DTF powder into the shaker
3. Evenly apply the powder onto the printed film (the printed side should be face‑up, with a matte surface)
4. Remove excess powder by tilting the film
5. Gently tap the back of the film to remove any remaining excess powder

Step 6: Curing in the Oven

When the Start button turns solid green and the machine beeps, preheating is complete. Now it's time to cure:

1. Wear the Heat‑Resistant Gloves – the oven interior and film will be hot
2. Place the powdered film into the oven with the printed side facing up, ensuring it fully contacts the Lower Heat Plate for even heat distribution

Depending on your mode:

• In Manual Mode: Close the lid and press Start to begin the curing cycle
• In Auto Mode: Simply close the lid – the cycle starts automatically

The machine will beep 5 seconds before the countdown ends, then begin the purification cycle. If you don't want to wait for the purification cycle, you can open the lid and remove the film as soon as the countdown ends.

Step 7: Heat Press Transfer

Once the film is cured, remove it from the oven using your Heat‑Resistant Gloves. Let it cool completely before heat pressing or storing.

Now it's time to transfer your design onto your garment:

1. Set your heat press to 305°F (152°C) for 15 seconds with 150 lbs of pressure
2. Pre‑press the shirt for 3–5 seconds to smooth out wrinkles and remove moisture
3. Place the cured film face‑down in the center of your garment
4. Cover with a heat‑resistant sheet (Teflon sheet)
5. Press for 15 seconds at 305°F
6. Wait at least 20 seconds before peeling the film – this allows the adhesive to fully bond
7. Peel the film (hot or cold, depending on your film type – most DTF films are hot peel)

If you prefer watching over reading, here's a complete video walkthrough of the entire process.

Chapter 4: Video Tutorial – How to Cure DTF Powder with the DO1 DTF Oven

Watch this step‑by‑step video tutorial to see the entire DO1 DTF Oven curing process in action—from powder application to heat pressing. The video covers proper temperature settings, timing, and techniques for professional results.

Now that you've mastered the curing process, let's cover some important maintenance tips to keep your oven running like new.

Chapter 5: Tips and Maintenance

To keep your DO1 DTF Oven performing at its best, check the drain plug monthly for oil residue, keep the smoke filter clean, and always use heat‑resistant gloves when handling hot film. Regular maintenance ensures consistent, professional results.

Drain Plug Check

About once a month, take a quick look at the drain plug on the back of the oven. If you see any oil leaking, simply wipe it away with a paper towel or soft cloth. This is normal condensation from the curing process and doesn't indicate a problem—just regular maintenance.

Smoke Filter Care

The DO1 DTF Oven comes with a built‑in smoke filter that reduces odors during the curing process. To maintain its effectiveness:

• Check the filter periodically for buildup
• Replace it if you notice reduced airflow or persistent odors
• Replacement filters are available through the HTVRONT website

General Best Practices

• Always wear heat‑resistant gloves when handling the film or the oven interior
• Keep the oven clean – wipe the interior with a soft, dry cloth after each session
• Store the foldable shaker flat to prevent warping
• Use a dedicated Teflon sheet for DTF curing to keep your heat press clean

Let's wrap up with a final encouragement to start creating your own custom designs.

Conclusion: Start Creating Today

The HTVRONT DO1 DTF Oven makes professional DTF curing accessible to everyone. With its intuitive controls, compact footprint, and reliable dual‑layer heating, you can produce durable, vibrant transfers right from your home or small shop.

And that's it – your custom T‑shirt is ready. Whether you're making pet‑themed designs, personalized gifts, or building a custom apparel business, the DO1 DTF Oven delivers consistent, professional‑grade results that will make your designs stand out.

Start creating your own designs with the HTVRONT DO1 DTF Oven today. For more DTF tips and tutorials, explore our complete tutorial library.

Frequently Asked Questions

What temperature and time should I use for the DO1 DTF Oven?

The default setting of 145°C (295°F) for 80 seconds works for most DTF powders and films. However, always check your DTF powder manufacturer's recommendations, as different powders may require slight adjustments. The DO1's digital controls make it easy to fine‑tune settings for optimal results.

What's the difference between Auto Mode and Manual Mode on the DO1?

Auto Mode starts the curing cycle automatically when you close the lid – perfect for hands‑free operation and batch work. Manual Mode requires you to press the Start button after closing the lid, giving you more control over timing. Both modes use the same temperature and time settings.

Can I use the DO1 DTF Oven with other DTF printers besides the D2?

Yes – the DO1 DTF Oven works with any DTF printer that produces A3‑sized or smaller prints. Its 19×17 inch curing area accommodates most standard DTF film sizes. The oven's temperature and time settings are universal and can be adjusted to suit different inks and powders.

How do I clean and maintain the DO1 DTF Oven?

Regular maintenance is simple: (1) check the drain plug on the back monthly and wipe away any oil residue, (2) keep the interior clean with a soft, dry cloth after each session, (3) monitor the smoke filter and replace it when airflow is reduced, and (4) always use heat‑resistant gloves when handling hot film. For more detailed maintenance tips, refer to the user manual included in the box.
