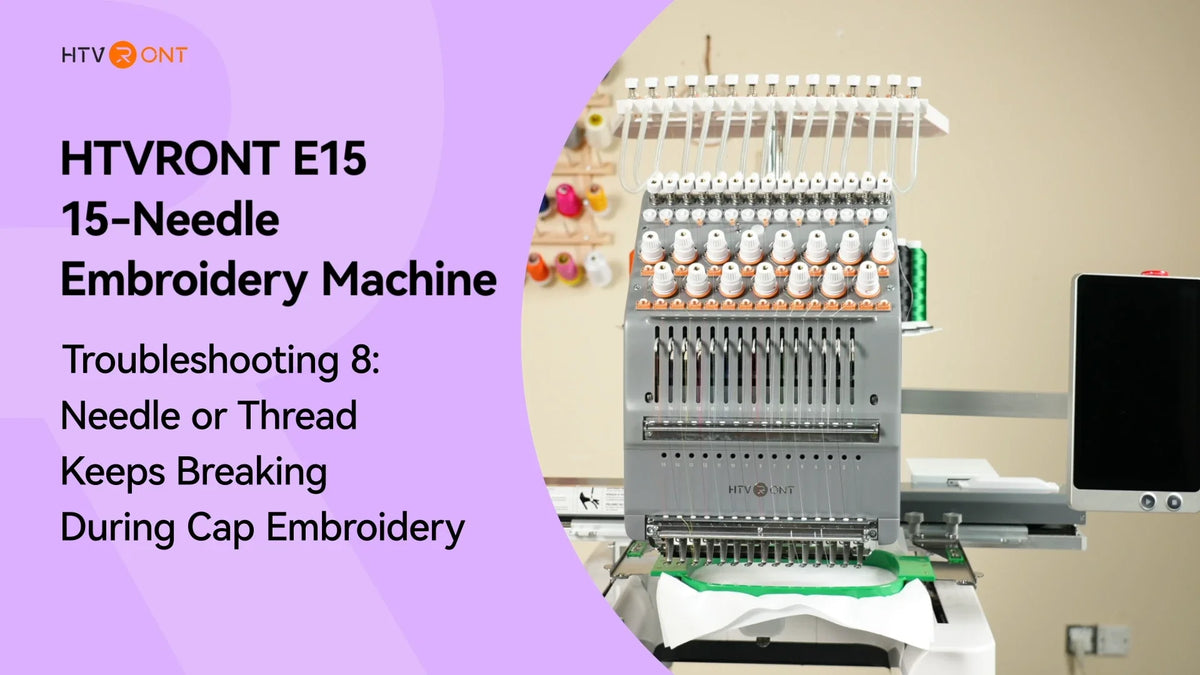

Needle or Thread Breaks During Cap Embroidery: Step-by-Step Fix Checklist

Needle or Thread Keeps Breaking During Cap Embroidery

If you keep experiencing needle or thread breaks during cap embroidery, don’t guess—use a structured checklist. Start by confirming your cap setup, then move step-by-step through needle choice, speed, the hat design file, and your threading process. This guide helps you stop breaks and get stable, repeatable results on your Embroidery Machine.

Part 1: Needle Breakage Troubleshooting

Needle breaks on caps usually come from one of three places: the cap itself, the machine setup, or the embroidery file. The cap may be too stiff or moving during stitching; the driver/hoop may not be secured correctly; or the design may be too dense for a curved surface. Work through the steps below in order to find the likely cause.

1. Check the Cap Embroidery Setup

Make sure the cap driver, cap hoop, and related parts are installed correctly and securely.

If flat embroidery works normally but cap embroidery keeps breaking needles, check these cap embroidery parts first before changing multiple settings.

2. Check the Cap Hooping

When hooping a cap, flip the sweatband out and place the metal strap over the seam where the brim meets the front panel.

For soft caps, use cap-specific stabilizer.

Make sure the cap is secured firmly, and sits as close to the needle plate as possible to reduce up-and-down movement during embroidery.

3. Use the Right Needle

For structured or trucker caps, needle choice matters more than you might expect.

Try a size 12 needle first.

If the needle keeps breaking, switch to a needle better suited for tougher materials, such as a size 14 needle.

Do not use a bent, worn, or previously damaged needle.

4. Soften a Stiff Cap Front

If the front panel or center seam is very stiff, lightly steam the area before hooping. Let the fabric and seam soften slightly before embroidering. This can help if the needle tends to break as soon as it hits the center seam.

5. Check the Cap Embroidery File

A flat embroidery file may not work well on a cap. Use embroidery designs intended for hats rather than forcing garment designs onto a curved surface.

Avoid overly dense stitches, poor stitch direction, and too much overlap across the center seam. Small text, dense stitching, and heavily resized designs can also increase the risk of needle breakage.

6. Lower the Embroidery Speed

Try running cap embroidery at 500–700 SPM. Higher speeds can increase needle and thread breakage over thick areas like the center seam.

7. Pattern Trace Before Embroidery

Run a complete Pattern Trace before embroidery.

Make sure the cap frame, brim, and presser foot have enough clearance throughout the entire design area. If anything looks too close, fix the hooping or choose a different placement before starting.

8. Adjust the Starting Point

Avoid placing the first stitch directly on the thick center seam.

Try to keep small text and fine details away from the seam as well.

Part 2: Thread Breakage Troubleshooting

If you’re seeing frequent thread breaks (even after needle issues are resolved), re-threading is the first practical step. Thread breaks often come from mis-seated thread in a guide or tension area.

Rethread the Machine & Run a Low-Speed Test

If you're getting thread breaks, rethread the machine first.

Follow the threading path from start to finish, and make sure the thread is correctly seated in every guide and tension point. If you need a quick walkthrough, use this guide once: rethread the machine.

After rethreading, run another low-speed test embroidery before committing to a full run. This helps confirm whether the breakage was caused by threading or tension.

FAQ

Conclusion

When needle or thread keeps breaking during cap embroidery, the fastest path is to troubleshoot in order: confirm setup and hooping, choose the right needle, soften overly stiff areas, verify the hat design file, lower speed, run a full Pattern Trace, and adjust the starting point away from thick seams. For thread breaks, rethread the machine and validate the result with a low-speed test.
