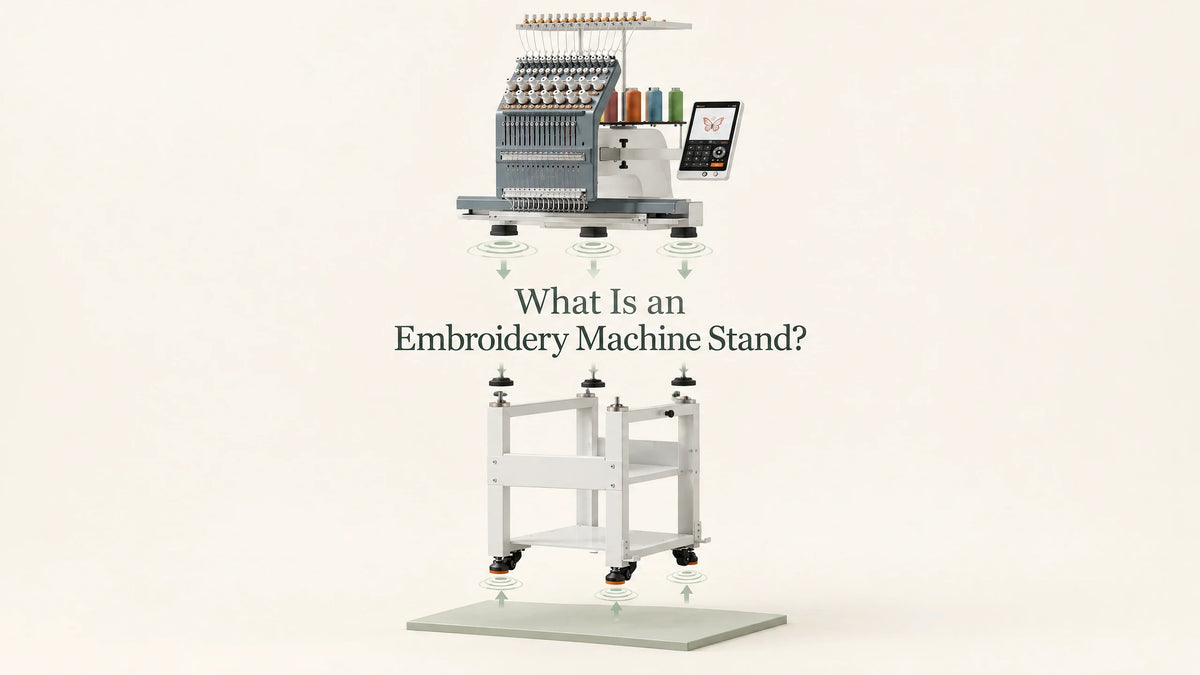

What Is an Embroidery Machine Stand

An embroidery machine stand is not furniture. It is the structural link between a high-speed stitching mechanism and the floor, and it decides whether that machine produces clean, consistent stitches or a stream of thread breaks, misalignment, and vibration noise. The machine head does the sewing, but the stand determines whether the sewing happens on a stable platform or a shaking table. That distinction is why manufacturers specify stand assembly, leveling, and vibration control as part of the installation process—not as an optional accessory upgrade.

This guide explains what an embroidery machine stand is, why installation and leveling matter, what types exist, and how to set one up correctly, including how the HTVRONT E15 approaches the stand question.

What Is an Embroidery Machine Stand?

An embroidery machine stand is the support structure that holds the machine head, the embroidery arm, and the hooping area at a stable, level working height. It is distinct from the embroidery hoop itself. A hoop holds the fabric; a stand holds the machine.

That distinction matters because the stand performs functions the hoop cannot. It carries the machine's weight, absorbs the vibration generated by thousands of stitches per minute, keeps the needle plate level relative to the fabric, and positions the hooping area at a height that allows consistent loading and unloading. On a commercial multi-needle machine, the stand also houses the thread stand, the cap frame jig, and storage for hoops and accessories.

A stand is therefore not a passive base. It is a vibration-management and alignment system. When that system fails, the machine's precision degrades even if the machine itself is mechanically sound.

Why Does Stand Installation and Leveling Matter?

The core problem is vibration. An embroidery machine at speed is a vibration generator. The needle bar reciprocates, the rotary hook rotates, the pantograph moves the hoop, and the thread tension system pulls against the fabric thousands of times per minute. That vibration has to go somewhere.

A wobbly or uneven stand acts like a tuning fork. It amplifies vibration rather than damping it. The visible consequences include thread breaks, skipped stitches, "shaky" satin columns, and designs that drift out of alignment during high-speed fills. ZSK, a commercial embroidery machine manufacturer, states the mechanism directly: vibrations "can negatively affect stitch precision and embroidery quality," and using vibration dampers "stabilises the machine and can significantly improve stitch consistency."

An out-of-level table introduces a second failure mode. When the tabletop is not level, embroidery quality becomes unstable, and problems such as pattern misalignment, broken threads, and overlapping threads appear. The machine is not broken; the platform beneath it is tilted, and every stitch is laid on a surface that is subtly fighting gravity.

An unstable stand also creates a safety and durability problem. Brother's manual for a machine weighing approximately 42 kg warns explicitly against setting it on an unstable table or desk, and instructs the user to adjust all four legs so they securely contact the surface and the machine is level, then press down on each corner to confirm stability. A machine that rocks during operation is not just producing poor embroidery; it is stressing its frame and bearings with every stitch cycle.

The cumulative effect is that stand quality is a stitch-quality variable, not a workshop-organisation detail. A machine running on a poorly assembled stand will underperform a machine of the same model running on a properly leveled, vibration-damped base.

What Are the Main Types of Embroidery Machine Stands?

Stands fall into a few practical categories, and the right choice depends on the machine's weight, the work it does, and whether it needs to move.

Tabletop or benchtop setups. The machine sits directly on a sturdy table or desk, with the four adjustable feet providing leveling and contact. This is common for smaller single-needle and home-style machines. Brother's setup guidance for one such machine follows exactly this pattern: adjust the four legs until the machine is level and all feet contact the surface. The limitation is that the machine's stability depends entirely on the table's rigidity and levelness.

Dedicated floor stands with lockable casters. These are metal frames purpose-built for a specific machine series. Brother's PR-series stand, for example, uses a steel frame, height-adjustable legs, and lockable wheels; the wheels allow movement, and locking them secures the stand during stitching. The critical rule with caster stands is that the wheels are for transport, not for operation: the stand should be supported by its feet during stitching, with the wheels clear of the ground or locked and unloaded.

Bolted or foundation-mounted stands. For heavier commercial machines, the stand is bolted down or mounted on a foundation to eliminate movement entirely. Industrial installation guidance specifies a flat, rigid surface capable of supporting the machine's weight, and places vibration-damping pads under the leveling bolts. This is the most stable configuration, but it sacrifices mobility.

Vibration-damped feet and risers. Many commercial machines offer vibration-damping feet as an upgrade or standard fit. These replace standard transport wheels and provide a stable, low-vibration setup that compensates for minor floor unevenness and angular deviations. They are the simplest way to improve an existing stand's vibration performance without replacing the frame.

The common thread across all four categories is the same: the stand's job is to decouple the machine from instability. Whether that is achieved through a heavy table, a locked caster frame, a bolted foundation, or damping feet, the objective is identical.

How Do You Set Up a Stand Correctly?

Correct setup follows a small number of rules that manufacturers and technicians consistently repeat.

1. Assemble the frame loose first, then square it, then tighten. Veteran technicians describe a "hand-tight" rule: build the skeletal frame with fasteners finger-tight, confirm all geometries are square, and only then apply final torque. Tightening prematurely pre-loads the metal and causes twisting, which undermines the stand's flatness before the machine even sits on it.
2. Level the feet, not the wheels. Adjust all four leveling feet so the machine is fully supported by the feet and the frame is level. Press down on each corner to confirm that the machine does not rock. If the stand has casters, they should not bear load during stitching.
3. Use vibration-damping pads or feet where specified. Industrial setups place vibration-proof rubber pads under the leveling bolts or feet. These compensate for minor floor irregularities and reduce the vibration that reaches the floor and reflects back into the machine.
4. Check level after any move or adjustment. Moving a stand, changing its height, or adjusting a leg can disturb level. The check is quick—press the corners, confirm contact, confirm no rocking—and it prevents the slow drift into misalignment that shows up as stitch defects weeks later.

How Does the HTVRONT E15 Handle the Stand Question?

The E15 approaches the stand question with a two-layer vibration-control design: damping built into the machine itself, and a separate base that adds leveling and mobility.

The Machine's Own Four Rubber Feet

The E15's machine body sits on four rubber feet built into its underside. These are not rigid leveling pads. Rubber serves two functions simultaneously: it dampens vibration before it reaches the base, and it grips the surface beneath it, reducing the tendency of the machine to creep or slide during high-speed stitching.

That first layer matters because it acts closest to the source. The vibration generated by the needle bar and rotary hook is partially absorbed at the point of contact, rather than being transmitted undamped into the base and then into the floor.

The Base: Four Adjustable Rubber Feet Plus Four Casters

The E15's base adds a second layer and a mobility solution:

• Four adjustable-height rubber feet allow the base to be leveled on uneven floors and to bear the machine's full weight during operation.
• Four casters allow the entire machine and base to be rolled across a flat surface when the machine is not in use.

The casters solve a practical problem that is easy to underestimate. A 15-needle machine is heavy enough that moving it usually requires a second person. With casters, a single operator can reposition the machine in the studio without recruiting help—clearing space for a large flat-frame job, moving the machine away from a wall, or reorganising the workspace.

The critical operational rule is that the casters are for transport, not for stitching. During embroidery, the base should rest on its adjustable rubber feet, with the casters unloaded. Running a high-speed machine on its wheels turns the base into a suspension system and defeats the purpose of the damping design.

Why the Two Layers Work Together

The combined effect is a stacked damping arrangement: rubber feet on the machine, rubber feet on the base, with the base frame between them. Each contact point absorbs a portion of the vibration energy, and each rubber foot also resists lateral movement. The result is reduced vibration transferred to the floor, which means less operating noise and less gradual drift of the machine across the work surface during long production runs.

This is a different approach from a bolted commercial stand. A bolted stand eliminates movement by anchoring the machine to the floor. The E15's design manages movement through damping and grip while preserving the ability to relocate the machine. For a small studio or craft business where the machine may need to share space with heat presses, DTF equipment, or a sublimation setup, that trade-off is practical: the machine stays stable during work and stays movable between jobs.

The E15 Stand Assembly, in Short

The full walkthrough is in our Unboxing & Installation of E15 Embroidery Machine tutorial. The stand-specific sequence, condensed, is what turns the two-layer design above into a stable platform:

1. Drop the leveling feet first. Loosen the orange leveling feet at the bottom of both uprights until they rest firmly on the floor.
2. Mirror the two uprights. Place them parallel to each other—one with the hook facing outward, the other as a mirror image with the shelf mounting holes facing inward.
3. Assemble loose, then square. Install the base plate, the front and rear crossbars, and the shelf with screws only finger-tight. Squaring the frame before final torque is what prevents the stand from warping.
4. Tighten in a cross pattern. Use the 2.5 mm and 5 mm hex keys to fully tighten all screws in a cross pattern rather than going around in a circle, so tension distributes evenly.
5. Lift with two people, from the bottom. Align the machine with the four round support pads on top of the stand. Never lift or hold the machine by the touchscreen, thread stand, machine head, covers, embroidery arm, or needle bar.
6. Level, then lock. If the machine wobbles, adjust the leveling feet until all four contact the support pads, then tighten the lock nuts on the machine feet and adjust and lock the stand feet as well.
7. Run the final checks. All four stand feet firmly on the floor, no wobble, all screws fully tightened, all four machine feet seated on the support pads, screen bracket secure, and enough clearance around the machine for safe operation.

That sequence is the physical implementation of everything above: a level, squared, fully supported base is what lets the E15's 1,200 SPM flat speed and ±0.1 mm stated accuracy actually hold.

The E15 also ships with a detachable table as part of its standard package, alongside two garment hoop sets, a 500 × 250 mm aluminum flat hoop, a cap drive attachment, and two cap hoops. The detachable table provides the working surface for flat embroidery and integrates with the machine's large flat frame workflow; the large flat frame tutorial describes removing the current hoop, selecting Large Flat Frame on the touchscreen, removing four mounting knobs, positioning the frame, and installing the knobs with hand-tightened security.

The principle remains the same as with any stand: the platform must be level, stable, and free of rocking for the machine's speed and precision to translate into consistent stitches.
